WideTEK® large format stand alone scanners

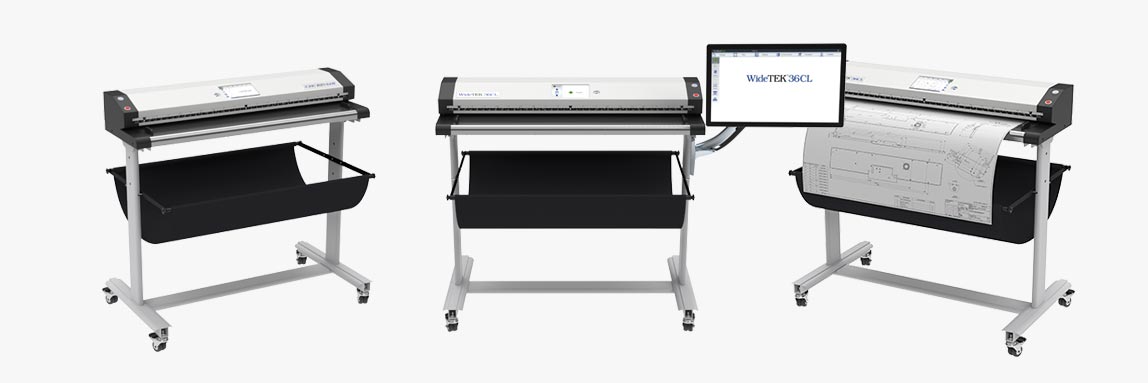

WideTEK® 36CL Ultra Fast Color CIS Scanner

A true standalone system at the lowest possible price

The WideTEK® 36CL-600 is by far the fastest color CIS scanner on the market, running at 10 inches per second at 200 dpi in full color. At the full width of 36" and 600dpi resolution, the scanner still runs at 1.7 inches per second. The scanning speeds are tripled in black and white and greyscale modes but can be individually configured if required for example, to scan fragile, valuable documents.

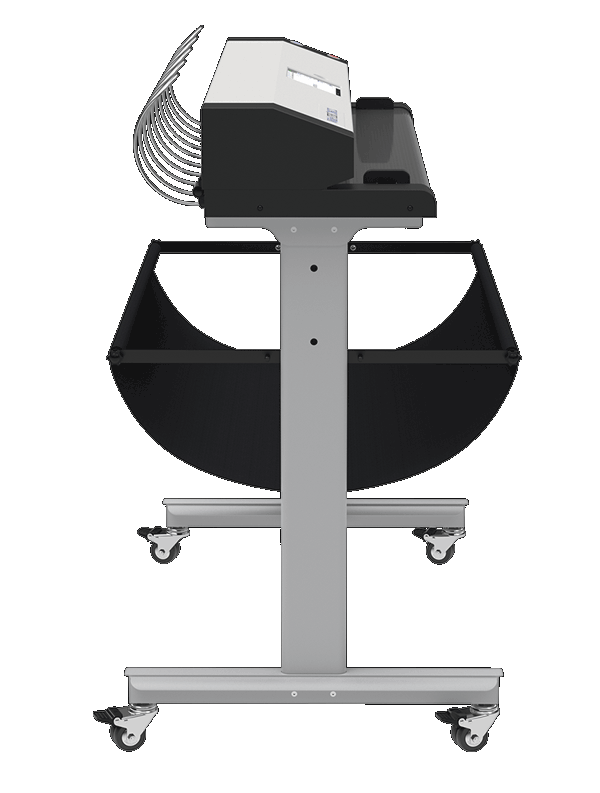

WideTEK® 36CL

All of these speeds are guaranteed, due to the Scan2Net® technology integrated in the scanner´s own built in 64 bit Linux PC. It is a true standalone system capable of scanning directly to FTP servers, hot folders, USB drives, to cloud applications in the internet or copying to printers directly, without the need for an extra PC.

The WideTEK® 36CL-600 processes documents up to 38 inches wide with a maximum scanning width of 36 inches. The scanner is a standalone system, which is capable of scanning to FTP servers, hot folders, USB mass storage devices, cloud applications on the Internet or copy directly to a printer without an additional external PC.

The WideTEK® 36CL produces extraordinarily sharp images, with color accuracy even superior to competing CCD scanners. Document rotation is done on the fly, a scan of an E-sized / A0 document in portrait mode at 300 dpi in 24bit color takes less than 7 seconds to scan and another 2 seconds to crop & deskew, preview and store.




WideTEK® 36CL Functions

  • Scans 36 inch widths, nearly unlimited length
  • Complies to FADGI *** guidelines and ISO 19264-1
  • Fastest color scanning at 10 inches per second (15 m/min) @ 200 dpi
  • 1200 x 1200 dpi scanner resolution
  • Automatic crop & deskew
  • On the fly rotation while scanning facilitates postprocessing
  • Face up scanning (no more "blind" scanning)
  • Real time display of scanned images, modify images without rescanning
  • Standalone device with its own Linux PC
  • Scan2USB -- Walk up Scanning to any USB device via USB
  • Scan2Print -- Copy to networked printers or hot folders
  • Scan2Network -- Output to network resources, SMB, FTP
  • Output formats: Multipage PDF (PDF/A) &TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG) and many more
  • Scan2Pad® -- Operation via tablet, smartphone or other mobile device

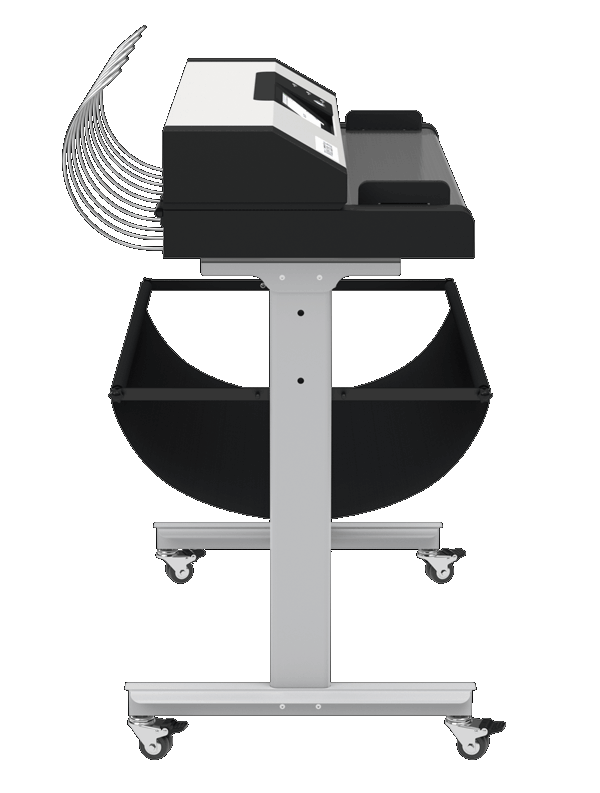

WideTEK® 36CL

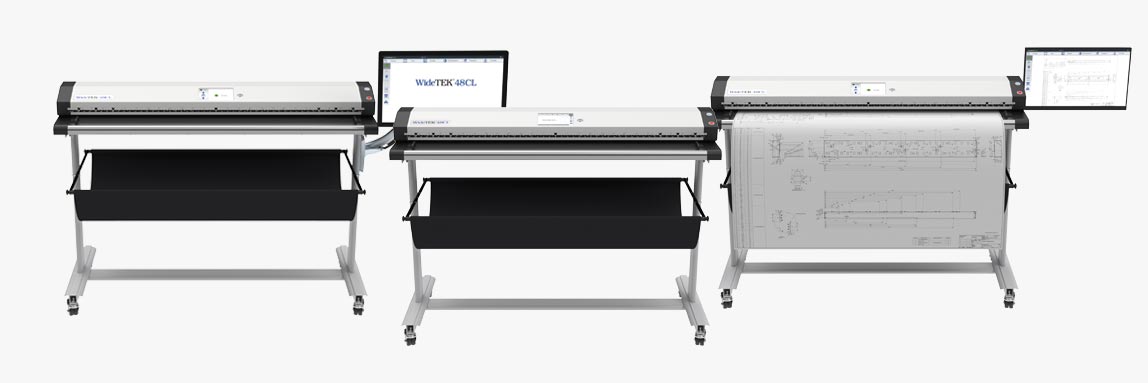

WideTEK® 48CL - Fastest 48 Inch Color CIS Scanner

Production Quality Scanner, Made in Germany

The WideTEK® 48CL-600 is by far the fastest 48 inch color CIS scanner on the market, producing production quality images at 10 inches per second for 150 dpi in full color. At the full width of 48" and 1200dpi resolution, the scanner still runs at 0.83 inches per second. The scanning speeds are tripled in black and white and greyscale modes but the speed can be limited if required to scan fragile, valuable documents.

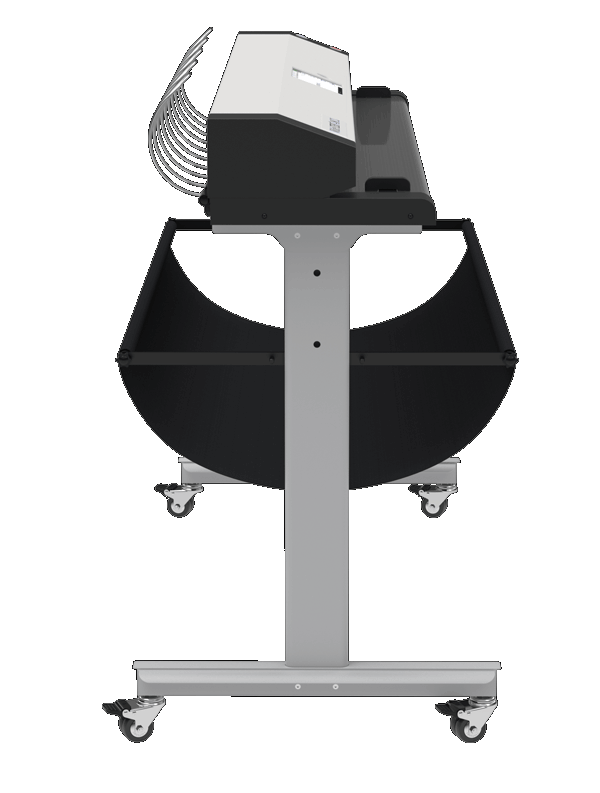

WideTEK® 48CL

All of these speeds are guaranteed, due to the Scan2Net® technology integrated in the scanner´s own built in 64 bit Linux PC and 16GB of memory. It is a true standalone system capable of scanning directly to FTP servers, hot folders, USB drives, to cloud applications in the internet or copying to printers directly, without the need for an extra PC. The WideTEK® 48CL has what it takes to run in a production environment 24/7, while still being among the lowest priced scanners of its size on the market.

Through reengineering and utilizing the most advanced CIS modules, the WideTEK 48CL is truly the fastest CIS scanner available. Document rotation is done on the fly, a scan of an E-sized / A0 document in landscape at 300 dpi in 24bit color takes less than 7 seconds to scan and another 1,5 seconds to crop & deskew, preview, cleanup, compress and store anywhere in the network. The WideTEK 48CL exceeds FADGI *** guidelines and complies with the ISO 19264-1 standard.




WideTEK® 48CL Functions

  • Scans 48 inch widths, nearly unlimited length
  • Complies to FADGI *** guidelines and ISO 19264-1
  • Fastest color scanning at 10 inches per second (15 m/min) @ 150 dpi
  • 1200 x 1200 dpi scanner resolution
  • Automatic crop & deskew
  • On the fly rotation while scanning facilitates postprocessing
  • Face up scanning (no more "blind" scanning)
  • Real time display of scanned images, modify images without rescanning
  • Standalone device with its own Linux PC
  • Scan2USB -- Walk up Scanning to any USB device via USB
  • Scan2Print -- Copy to networked printers or hot folders
  • Scan2Network -- Output to network resources, SMB, FTP
  • Output formats: Multipage PDF (PDF/A) &TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG) and many more
  • Scan2Pad® -- Operation via tablet, smartphone or other mobile device
WideTEK® 48CL

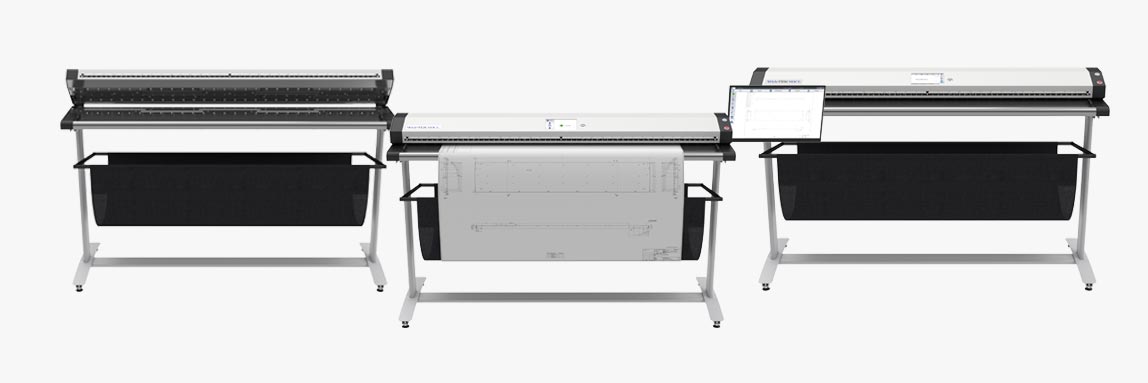

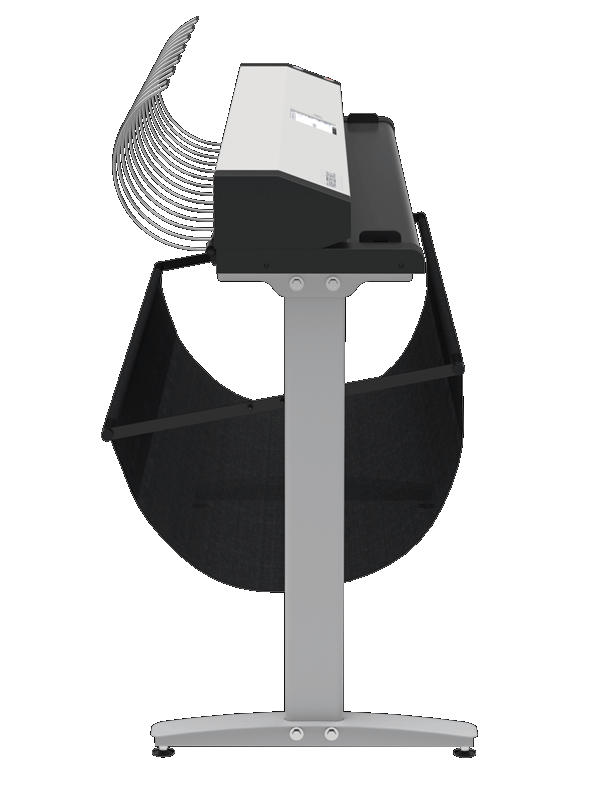

WideTEK® 60CL - Fastest 60 Inch Color CIS Scanner

Production Quality Scanner, Made in Germany

The WideTEK® 60CL-600 is by far the fastest 60 inch color CIS scanner on the market, producing production quality images at 8 inches per second for 150 dpi in full color. At the full width of 60" and 600 dpi resolution, the scanner still runs at 1 inches per second. The scanning speeds are tripled in black and white and greyscale modes but the speed can be limited if required to scan fragile, valuable documents.

WideTEK 60CL

All of these speeds are guaranteed, due to the Scan2Net® technology integrated in the scanner´s own built in 64 bit Linux PC and 16GB of memory. It is a true standalone system capable of scanning directly to FTP servers, hot folders, USB drives, to cloud applications in the internet or copying to printers directly, without the need for an extra PC. The WideTEK® 60CL has what it takes to run in a production environment 24/7, while still being among the lowest priced scanners of its size on the market.

Through reengineering and utilizing the most advanced CIS modules, the WideTEK 60CL is truly the fastest CIS scanner available. Document rotation is done on the fly, a scan of an E-sized / A0 document in landscape at 300 dpi in 24bit color takes less than 7 seconds to scan and another 1,5 seconds to crop & deskew, preview, cleanup, compress and store anywhere in the network. The WideTEK 60CL exceeds FADGI *** guidelines and complies with the ISO 19264-1 standard.

The WideTEK® 60CL processes documents up to 61,85 inches wide with a maximum scanning width of 60 inches, producing extraordinarily sharp images, with color accuracy even superior to competing CCD scanners. Document rotation is done on the fly, a scan of an E-sized / A0 document in landscape at 300 dpi in 24bit color takes less than 7 seconds to scan and another 2 seconds to crop & deskew, preview and store.




WideTEK® 60CL Functions

  • Scans 60 inch widths, nearly unlimited length
  • Complies to FADGI *** guidelines and ISO 19264-1
  • Fastest color scanning at 8 inches per second (12,2 m/min) @ 150 dpi
  • 1200 x 1200 dpi scanner resolution
  • Automatic crop & deskew
  • On the fly rotation while scanning facilitates postprocessing
  • Face up scanning (no more "blind" scanning)
  • Real time display of scanned images, modify images without rescanning
  • Standalone device with its own Linux PC
  • Scan2USB -- Walk up Scanning to any USB device via USB
  • Scan2Print -- Copy to networked printers or hot folders
  • Scan2Network -- Output to network resources, SMB, FTP
  • Output formats: Multipage PDF (PDF/A) &TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG) and many more
  • Scan2Pad® -- Operation via tablet, smartphone or other mobile device
WideTEK 60CL

WideTEK® 36 - Wide Format CCD Scanner for documents up to 36 inch widths

Complete redesign of electronics and improved hardware adds new functionality and enhances the already acclaimed camera technology

The WideTEK® 36 wide format CCD scanner scans documents up to 36 inches wide (915 mm). The new mainboard is an Intel® CoreTM Gen 9 processor which ensures faster data processing. Together with a faster 250GB SSD drive, internal processes and the system start time are significantly accelerated.

WideTEK Scanner 36

The new 7 inch multi-touch display with higher resolution increases the ease of use and improves workflow. And, the configurable dark mode enables the user to work ergonomically and in a way that is easy on the eyes.

Of course, all WideTEK® CCD scanners are delivered with the latest version of the Scan2Net® software.

WideTEK Scanner 36

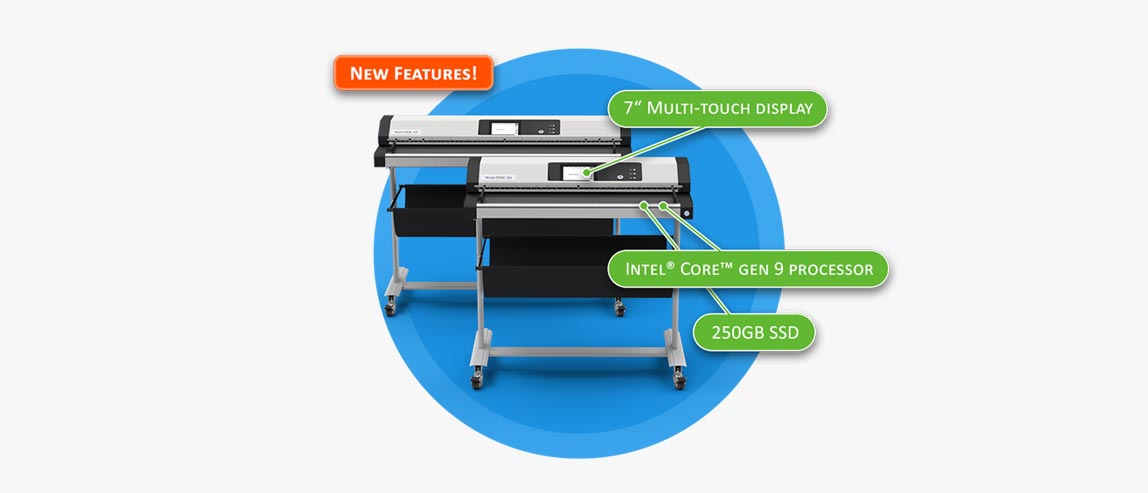

Upgraded WideTEK 36 Features:

  • Intel® CoreTM Gen 9 processor
  • Lightning fast image processing
  • Fast 250GB SSD
  • Powerful, silent micro stepping motors & controls
  • High resolution 7" multi-touch display
  • Improved ON/OFF switch

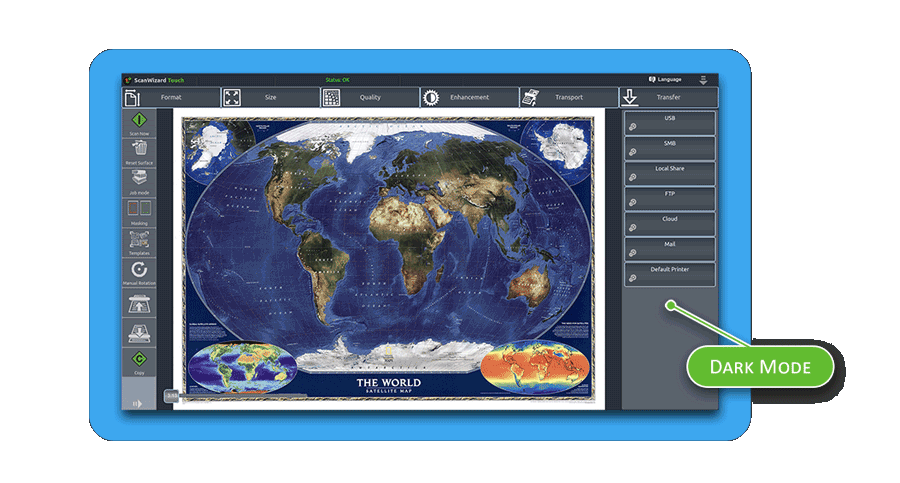

  • New firmware includes dark mode

Easy to use walk up scanning or mobile scanning with Scan2Pad®

The integrated walk up scanning software makes the scanner a truly shared device. One click of the mouse is enough to either print the scan, send it to any directory in the network or via email, to upload it to the FTP server, or to save it to the USB memory device. Simply walk up, scan and store or send the image, all through the use of the touchscreen.

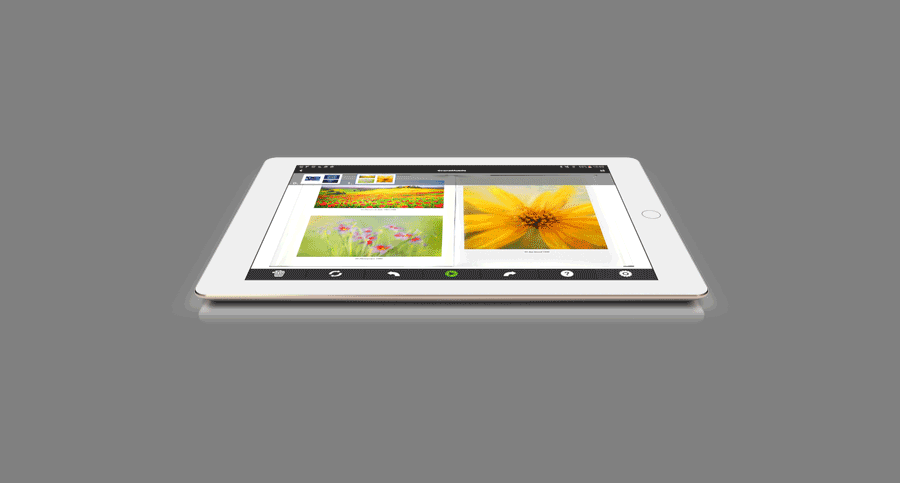

Scan2Pad® lets you control the WideTEK® 36 wide format scanner using an iPad or an Android tablet or even a smartphone running Android version 4.0.3 or higher. Quickly adjust the color depth, go from black & white to grayscale or full color and adjust brightness and contrast on your pad. Create PDF documents from your scans in a single step. Scan2PAD is the unique mobile scanning application that doesn´t require you to use an external cloud server. Simply scan your documents and take them away on your pad. It is fast, secure and best of all, free of charge.

WideTEK Scanner 36

Gentle Scanning of Historical and Fragile Documents

WideTEK® 36 gently scans due to special transport rollers that serve as pressure points ensuring safe document transport. For historical and fragile documents, this is critical. Automatic document size recognition means that operators are flexible when feeding a source document into the scanner. It is not necessary to exactly center the document on the scan area. With crop and deskew, the resulting image output will be straight, centered and without black borders.

The unique background drum does not touch the glass plate at any time, avoiding scratches and document skews. To achieve extra contrast on sepias and film based documents, the standard black drum can be exchanged with a white drum, without needing any tools.

The user operates the wide format scanner either with a standard internet browser or alternatively, via the built-in touchscreen. A monitor directly connected to the wide format scanner can be used for image control or to modify the scan parameters, without a client PC. Using the touchscreen display, up to 30 different password protected jobs can be defined and stored. The jobs contain preconfigured settings such as scan parameters or directories on the network drives.

The exceptionally high scanning speed, dust-protected and encapsulated optical components and the absence of consumables characterize this highly efficient production-ready device. With a life expectancy of over one million scans, the WideTEK® 36 redefines the price/performance ratio in the wide format scanner market.




WideTEK® 36 Wide Format CCD Scanner - Functions

  • Scans 36 inch widths
  • Fastest color scanning at 15 inches per second (22.9 m/min) @ 200 dpi
  • 1200 x 1200 dpi scanner resolution
  • Automatic crop & deskew
  • Automatic format- and position recognition of source document anywhere on the scanning bed
  • Virtual rescan, modify images without rescanning
  • Configurable scan templates and target templates
  • Face up scanning (no more "blind"scanning)
  • Real time display of scanned images
  • Wide color gamut, supports Adobe RGB, sRGB and native RGB
  • Standalone device with its own Linux PC
  • Direct output to the integrated USB-Port
  • Scan2Net -- Output to SMB, FTP, Printer, eMail
  • Output formats: Multipage PDF (PDF/A) &TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG) and many more
  • Scan2Network -- Output to network resources, SMB, FTP
  • Complies to FADGI *** guidelines, ISO 19264-1
WideTEK Scanner WT36CL-600

WideTEK® 44 - Wide Format CCD Scanner for documents up to 44 inch widths

Complete redesign of electronics and improved hardware adds new functionality and enhances the already acclaimed camera technology

The WideTEK® 44 wide format CCD scanner scans documents up to 44 inches wide (1120 mm). The new mainboard is an Intel® CoreTM Gen 9 processor which ensures faster data processing. Together with a faster 250GB SSD drive, internal processes and the system start time are significantly accelerated.

WideTEK Scanner 36

The new 7 inch multi-touch display with higher resolution increases the ease of use and improves workflow. And, the configurable dark mode enables the user to work ergonomically and in a way that is easy on the eyes.

Of course, all WideTEK® CCD scanners are delivered with the latest version of the Scan2Net® software.

WideTEK Scanner 36

Upgraded WideTEK 44 Features:

  • Intel® CoreTM Gen 9 processor
  • Lightning fast image processing
  • Fast 250GB SSD
  • Powerful, silent micro stepping motors & controls
  • High resolution 7" multi-touch display
  • Improved ON/OFF switch
  • New firmware includes dark mode

Gentle Scanning of Historical and Fragile Documents

WideTEK® 44 wide format scanner gently scans due to special transport rollers that serve as pressure points ensuring safe document transport. For historical and fragile documents, this is critical.

The background drum does not touch the glass plate at any time, avoiding scratches and document skews. For extra contrast on sepias and film based documents, the standard black background drum can be easily exchanged with a white drum, with no tools required.

Automatic document size recognition means that operators are flexible when feeding a source document into the sheetfeed scanner. It is not necessary to exactly center the document on the scan area. With crop and deskew, the resulting image output will be straight, centered and without black borders.

State of the art illumination using bright white LEDs guarantees long lifetime and a low cost of ownership, since there are practically no consumables necessary over the life of the product. Cutting edge camera technology, with a dust-protected, fully sealed camera box holding CCD systems that use a patented stitching procedure, delivers a scanner resolution of up to 1200 dpi optical.

The user operates the wide format scanner either with a standard internet browser or alternatively, via the built-in touchscreen. A monitor directly connected to the wide format scanner can be used for image control or to modify the scan parameters, without a client PC. Using the touchscreen display, up to 30 different password protected jobs can be defined and stored. The jobs contain preconfigured settings such as scan parameters or directories on the network drives.



Easy to use walk up scanning or mobile scanning with Scan2Pad®

Scan2Pad® lets you control the WideTEK® 44 wide format ccd scanner using an iPad or an Android tablet or even a smartphone running Android version 4.0.3 or higher.


The exceptionally high scanning speed, dust-protected and encapsulated optical components and the absence of consumables characterize this highly efficient production-ready device. With a life expectancy of over one million scans, the WideTEK® 44 redefines the price/performance ratio in the wide format scanner market.

Optimize your investments by purchasing the WideTEK® 44 wide format CCD scanner and upgrading to the larger WideTEK® 48 format later, when necessary.

WideTEK Scanner 36

WideTEK® 44 Wide Format CCD Scanner Functions

  • Scans 44 inch widths
  • Fastest color scanning at 15 inches per second (22.9 m/min) @ 150 dpi
  • 1200 x 1200 dpi scanner resolution
  • Automatic crop & deskew
  • Automatic format- and position recognition of source document anywhere on the scanning bed
  • Virtual rescan, modify images without rescanning
  • Configurable scan templates and target templates
  • Face up scanning (no more "blind"scanning)
  • Real time display of scanned images
  • Wide color gamut, supports Adobe RGB, sRGB and native RGB
  • Standalone device with its own Linux PC
  • Direct output to the integrated USB-Port
  • Scan2Net -- Output to SMB, FTP, Printer, eMail
  • Output formats: Multipage PDF (PDF/A) &TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG) and many more
  • Complies to FADGI *** guidelines, ISO 19264-1

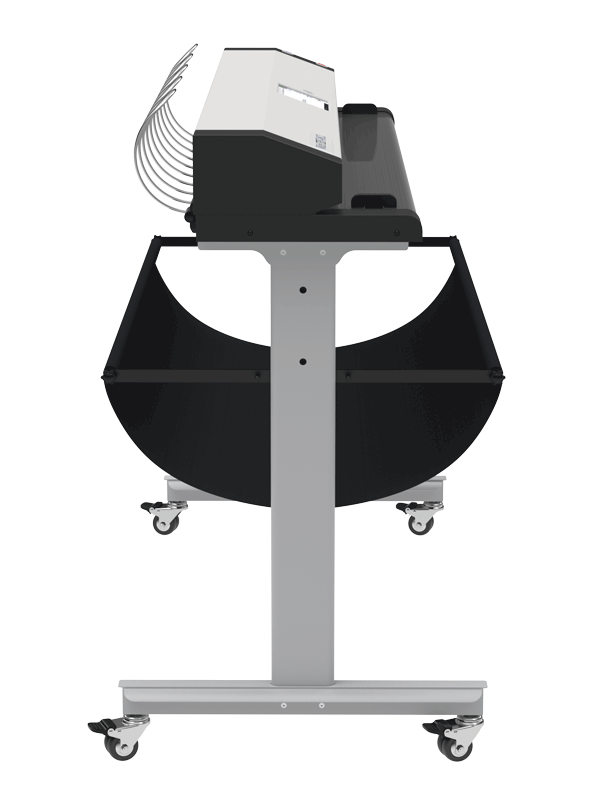

WideTEK Scanner WT48CL-600

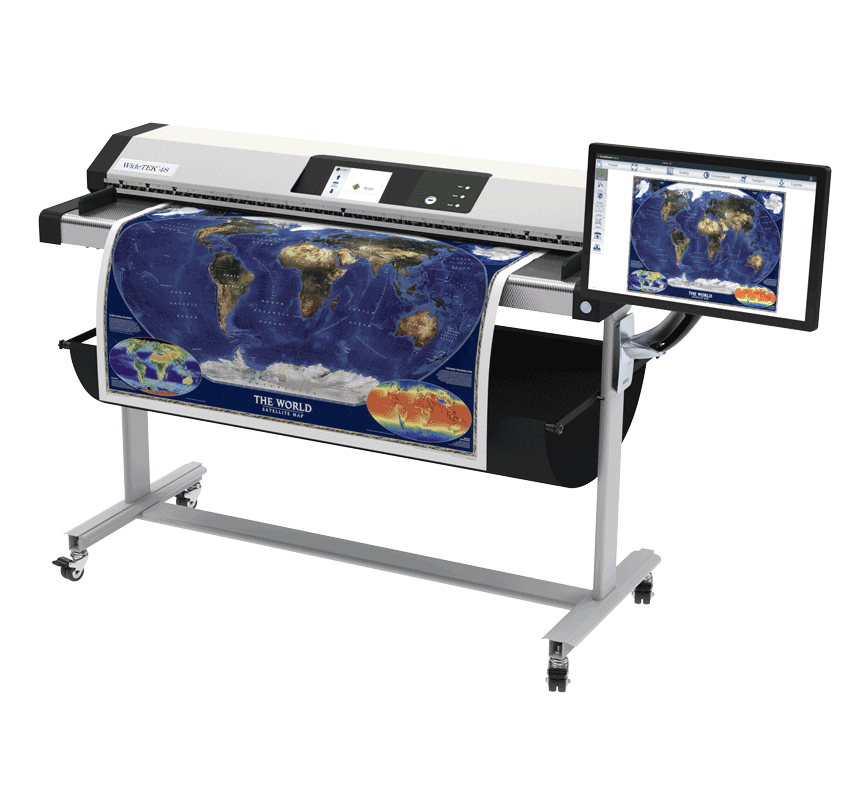

WideTEK® 48 - Wide Format CCD Scanner for documents up to 48 inch widths

Complete redesign of electronics and improved hardware adds new functionality and enhances the already acclaimed camera technology

The WideTEK® 48 wide format CCD scanner scans documents up to 48 inches wide (1220 mm). The new mainboard is an Intel® CoreTM Gen 9 processor which ensures faster data processing. Together with a faster 250GB SSD drive, internal processes and the system start time are significantly accelerated.

WideTEK Scanner 36

The new 7 inch multi-touch display with higher resolution increases the ease of use and improves workflow. And, the configurable dark mode enables the user to work ergonomically and in a way that is easy on the eyes.

Of course, all WideTEK® CCD scanners are delivered with the latest version of the Scan2Net® software.

WideTEK Scanner 36

Upgraded WideTEK 48 Features:

  • Intel® CoreTM Gen 9 processor
  • Lightning fast image processing
  • Fast 250GB SSD
  • Powerful, silent micro stepping motors & controls
  • High resolution 7" multi-touch display
  • Improved ON/OFF switch
  • New firmware includes dark mode

Gentle Scanning of Historical and Fragile Documents

WideTEK® 48 wide format scanner gently scans due to special transport rollers that serve as pressure points ensuring safe document transport. For historical and fragile documents, this is critical.

The new background drum does not touch the glass plate at any time, avoiding scratches and document skews. For extra contrast on sepias and film based documents, the standard black background drum can be easily exchanged with a white drum, with no tools required.

Automatic document size recognition means that operators are flexible when feeding a source document into the sheetfeed scanner. It is not necessary to exactly center the document on the scan area. With crop and deskew, the resulting image output will be straight, centered and without black borders.

State of the art illumination using bright white LEDs guarantees long lifetime and a low cost of ownership, since there are practically no consumables necessary over the life of the product. Cutting edge camera technology, with a dust-protected, fully sealed camera box holding CCD systems that use a patented stitching procedure, delivers a scanner resolution of up to 1200 dpi optical.

The user operates the wide format scanner either with a standard internet browser or alternatively, via the built-in touchscreen. A monitor directly connected to the wide format scanner can be used for image control or to modify the scan parameters, without a client PC. Using the touchscreen display, up to 30 different password protected jobs can be defined and stored. The jobs contain preconfigured settings such as scan parameters or directories on the network drives.



Easy to use walk up scanning or mobile scanning with Scan2Pad®

Scan2Pad® lets you control the WideTEK® 48 wide format scanner using an iPad or an Android tablet or even a smartphone running Android version 4.0.3 or higher.


The exceptionally high scanning speed, dust-protected and encapsulated optical components and the absence of consumables characterize this highly efficient production-ready device. With a life expectancy of over one million scans, the WideTEK® 48 redefines the price/performance ratio in the wide format scanner market.

WideTEK Scanner WT48CL-600

WideTEK® 48 Wide Format CCD Scanner Functions

  • Scans 48 inch widths
  • Fastest color scanning at 15 inches per second (22.9 m/min) @ 150 dpi
  • 1200 x 1200 dpi scanner resolution
  • Automatic crop & deskew
  • Automatic format- and position recognition of source document anywhere on the scanning bed
  • Virtual rescan, modify images without rescanning
  • Configurable scan templates and target templates
  • Face up scanning (no more "blind"scanning)
  • Real time display of scanned images
  • Wide color gamut, supports Adobe RGB, sRGB and native RGB
  • Standalone device with its own Linux PC
  • Direct output to the integrated USB-Port
  • Scan2Net -- Output to SMB, FTP, Printer, eMail
  • Output formats: Multipage PDF (PDF/A) &TIFF, JPEG, JPEG 2000, PNM, PNG, BMP, TIFF (Raw, G3, G4, LZW, JPEG) and many more
  • Complies to FADGI *** guidelines, ISO 19264-1
WideTEK Scanner WT48CL-600
